Cable Tie Fixing

( Ref. 55120032 )

´ Data sheet

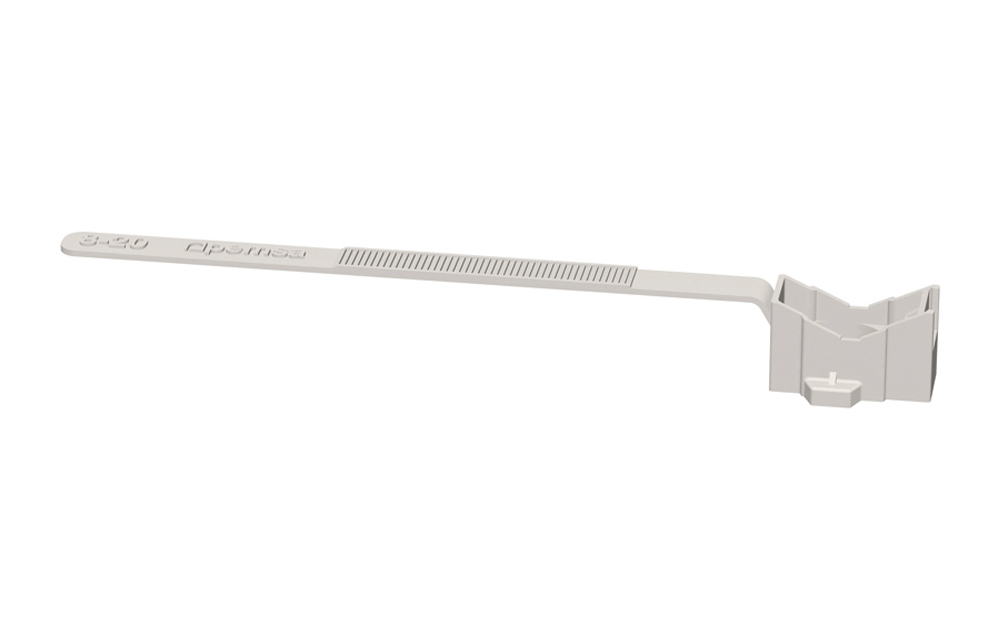

Cable tie fixing for polyamide 6 conduit in grey color (RAL 7035) for rigid and flexible halogen free and PVC conduits. Accessory for the assembly and installation of rigid and flexible conduits. Available in two sizes that can be used for several conduit diameters.

Suitable for the fixing of rigid and corrugated conduits.

Compatible with any type of conduit.

CE conformity to the 2014/35 directive and the IEC 61386 standard.

Manufactured in polyamide 6. Self-extinguishing, halogen-free according to UNE/EN 60754-2 y UNE/EN 60754-1 and flame-retardant.

Very flexible fixing system as the flange adapts to various diameters of conduit.

Suitable for fixing RLH, CLH, RPVC and CPVC rigid and corrugated conduits for the protection of electric cables in building, tertiary and industrial applications.
ETIM EC000046
Colour Grey RAL 7035
Cable diameter range 8 / 32
kg/u 0.004
u 100
Material Poyamide 6
Working temperature range (°C) -15 / 90 ºC
Fire resistance LIBRE DE HALÓGENOS,NO PROPAGADOR DE LA LLAMA
