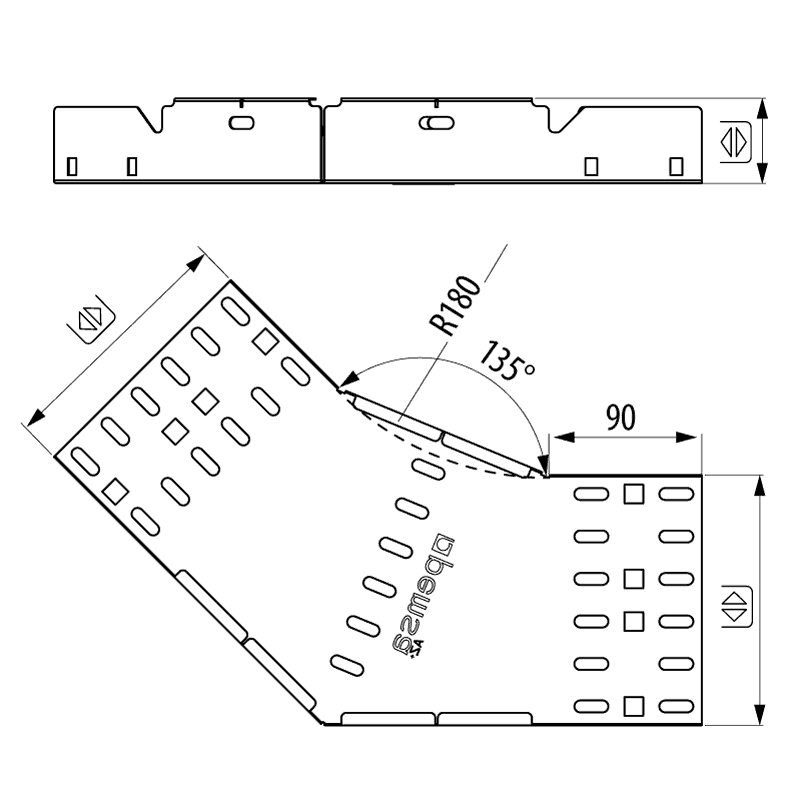

45º bend Pemsaband Vulcan

45º bend Pemsaband Vulcan
  • m
    PG3, Pregalvanised, ZM High Resistance Alloy
  • h
    12, 18, 25, 50
  • g
    50, 75, 100, 150, 225, 300, 450, 600, 750, 900
  • s
    1
  • n
    Steel with surface coating
  • fi
    20 J
  • ˜
    IP44
  • ł
    -50 / 150 ºC
  • Ł
    A1 No combustible
  • ETIM 10
45º Bend accessory made of steel. Available in PG and AZ+ protection systems. Features a plug-in system for quick connection to Pemsaband® Vulcan cable trays. Hole pattern that provides continuity to the cable tying and facilitate a suitable bending radius for the cables.

Plug-in connection system without additional couplers, only requiring the installation of the Coupler kit M 6 Pemsaband® Vulcan which allows saving costs in material and labor.

High corrosion resistance. Available in PG and AZ+ protection systems. Class 3 and Class 8 according to BS EN 61537

Regulatory compliance: designed and developed in accordance with edition 3 of IEC 61537, Directive 2014/35/EU (CE marking) and UKCA marking, ensuring safety and reliability in electrical installations.

This accessory is designed to create 45º bends for the management, support, transport and distribution of cables in electrical and/or telecommunications installations. It is applicable to, among others, the following areas: -Buildings, including public buildings, shopping centres and Data Centres (DCs) . - Civil works and infrastructure, such as tunnels, car parks, airports and railways and underground/metro lines. - The service and industrial sectors, being suitable for applications in the manufacturing, chemical and food industries. The system is suitable for rapid installation indoors in controlled atmospheres, as well as in outdoor installations or humid environments, selecting the appropriate protection and finishing system in each case based on the environmental and service conditions.
ó m ° h g ∑ p
PG PG3, Pregalvanised Class 3 12 50 82004756 0,140
PG PG3, Pregalvanised Class 3 12 75 82004757 0,197
PG PG3, Pregalvanised Class 3 12 100 82004758 0,252
PG PG3, Pregalvanised Class 3 12 150 82004759 0,377
PG PG3, Pregalvanised Class 3 12 225 82004760 0,591
PG PG3, Pregalvanised Class 3 18 300 82004761 1,276
PG PG3, Pregalvanised Class 3 25 50 82004762 0,191
PG PG3, Pregalvanised Class 3 25 75 82004763 0,253
PG PG3, Pregalvanised Class 3 25 100 82004764 0,310
PG PG3, Pregalvanised Class 3 25 150 82004765 0,440
PG PG3, Pregalvanised Class 3 25 225 82004766 0,661
PG PG3, Pregalvanised Class 3 25 300 82004767 1,369
PG PG3, Pregalvanised Class 3 25 450 82004768 2,250
PG PG3, Pregalvanised Class 3 25 600 82004769 3,309
PG PG3, Pregalvanised Class 3 50 50 82004770 0,283
PG PG3, Pregalvanised Class 3 50 75 82004771 0,349
PG PG3, Pregalvanised Class 3 50 100 82004772 0,409
PG PG3, Pregalvanised Class 3 50 150 82004773 0,545
PG PG3, Pregalvanised Class 3 50 225 82004774 1,164
PG PG3, Pregalvanised Class 3 50 300 82004775 1,557
PG PG3, Pregalvanised Class 3 50 450 82004776 2,467
PG PG3, Pregalvanised Class 3 50 600 82004777 3,556
PG PG3, Pregalvanised Class 3 50 750 82004778 7,929
PG PG3, Pregalvanised Class 3 50 900 82004779 10,316
PG PG3, Pregalvanised Class 3 25 750 82004780 7,458
PG PG3, Pregalvanised Class 3 25 900 82004781 9,797
AZ+ ZM High Resistance Alloy Class 8 25 750 82004782 7,458
AZ+ ZM High Resistance Alloy Class 8 25 900 82004783 9,797
AZ+ ZM High Resistance Alloy Class 8 25 50 82004784 0,191
AZ+ ZM High Resistance Alloy Class 8 25 75 82004785 0,253
AZ+ ZM High Resistance Alloy Class 8 25 100 82004786 0,310
AZ+ ZM High Resistance Alloy Class 8 25 150 82004787 0,440
AZ+ ZM High Resistance Alloy Class 8 25 225 82004788 0,661
AZ+ ZM High Resistance Alloy Class 8 25 300 82004789 1,369
AZ+ ZM High Resistance Alloy Class 8 25 450 82004790 2,250
AZ+ ZM High Resistance Alloy Class 8 25 600 82004791 3,309
AZ+ ZM High Resistance Alloy Class 8 50 50 82004792 0,283
AZ+ ZM High Resistance Alloy Class 8 50 75 82004793 0,349
AZ+ ZM High Resistance Alloy Class 8 50 100 82004794 0,409
AZ+ ZM High Resistance Alloy Class 8 50 150 82004795 0,545
AZ+ ZM High Resistance Alloy Class 8 50 225 82004796 1,164
AZ+ ZM High Resistance Alloy Class 8 50 300 82004797 1,557
AZ+ ZM High Resistance Alloy Class 8 50 450 82004798 2,467
AZ+ ZM High Resistance Alloy Class 8 50 600 82004799 3,556
AZ+ ZM High Resistance Alloy Class 8 50 750 82004974 7,929
AZ+ ZM High Resistance Alloy Class 8 50 900 82004975 10,316
