Pemsaband Vulcan Heavy Duty
( Ref. 82004638 )
REACH_ROHS
Memographic

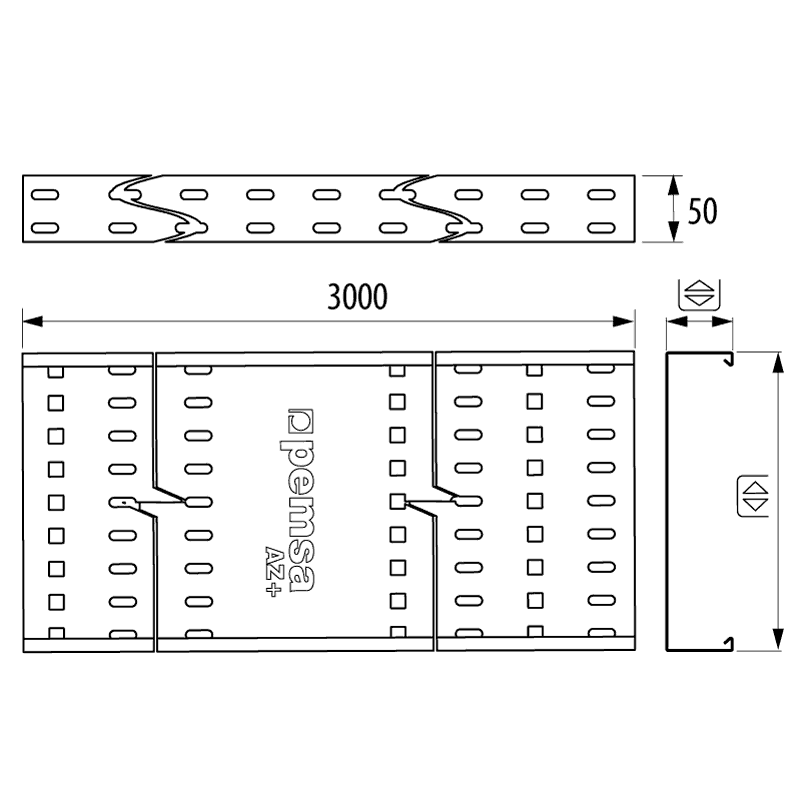

Pemsaband Vulcan Heavy Duty perforated metal cable tray with quick-connect system, available in 50mm height, made of steel with PG and AZ+ protection systems. The quick-connect system features tool-free fastening clips, saving on material and labour costs. Of 50 mm height, Width 75 mm, With PG protection system. The Pemsaband® Vulcan Heavy Duty cable tray is designed for supporting and routing electrical and telecommunications cables for heavy duty loads. The Pemsaband® Vulcan product range has been designed in accordance with the technical requirements of IEC 61537, Edition 3, and BS-EN 61537.
High corrosion resistance. Available in PG and AZ+ protection systems. Class 3 and Class 8 according to BS EN 61537
Wide range of sizes and accessories. Dividers, Covers, Bends, T-joints, Crossovers, Risers, brackets and accessories for connecting lighting or devices.
Slot pattern designed to facilitate cable fixing.
New design of profile and safety edge. The contact area increases by 80%. Increases the contact surface between the cable tray and cover, ensuring electrical continuity in accordance with Edition 3 of the IEC 61357 standard
VulcanFast quick-connect system with tool-free, quick-fixing clips saves on material and labuor costs. Reduces installation time by 3x.
A system designed for the management, support, transport and distribution of cables in electrical and/or telecommunications installations.
It is applicable to, among others, the following areas:
- Buildings, including public buildings, shopping centres, and Data Centres (DCs) .
- Civil works and infrastructure, such as tunnels, Car parks, airports and railways and underground/metro lines.
- The service and industrial sectors, being suitable for applications in the manufacturing, chemical and food industries.
The system is suitable for rapid installation indoors in controlled atmospheres, as well as in outdoor installations or humid environments, selecting the appropriate protection and finishing system in each case based on the environmental and service conditions.
| ETIM 10 | EC000047 |
|---|---|
| Protection System | PG |
| Finish | PG3, Pregalvanised |
| Resistance Class | Class 3 |
| Flange (mm) | 50 |
| Width (mm) | 75 |
| Length (m) | 3 |
| Material | Steel with surface coating |
|---|---|
| Impact Strength (J) | 20 J |
| Section (mm2) | 3611 |
| IP | IP23 |
| Working temperature range (°C) | -50 / 150 ºC |
| Fire resistance | A1 No combustible |
