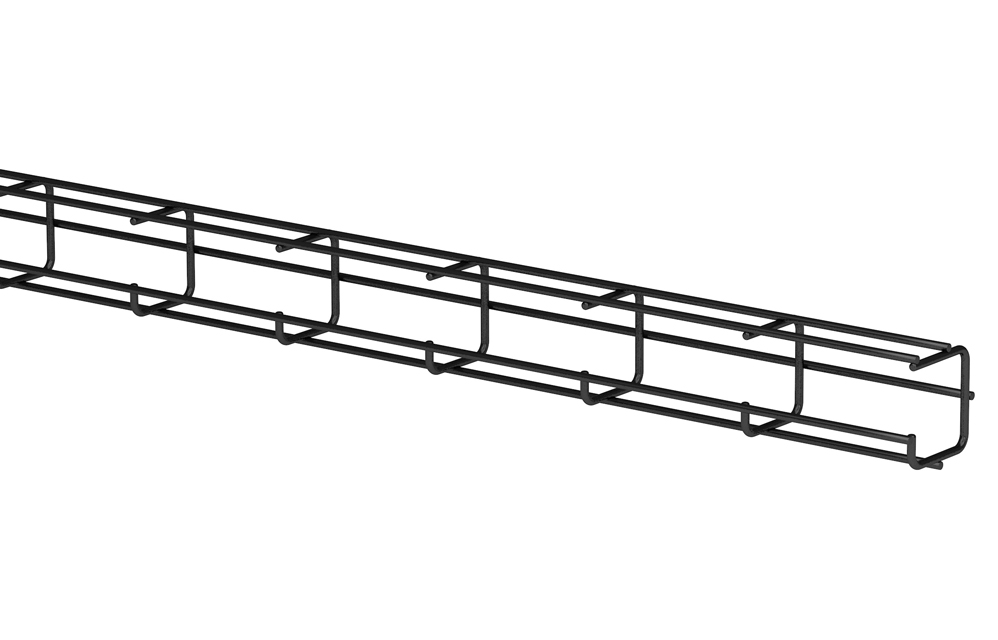

Rejitech G+

( Ref. 60683206 )

60683206
Steel wire mesh tray with heights of 60 and 100 mm, surface protection and safety edge. Of 60 mm height, Width 60 mm, With BK8 protection system. Used in industrial installations for the support and management of electric cables in false ceilings, confined spaces and on walls. The ease of installation is thanks to the Click quick connect system that requires no fixings for supports and accessories. It requires no additional support and is attached to the ceiling and walls by using just the Rejitech fixing. It has an open structure that allows the lateral introduction of the cables therefore reducing the installation time. Available in different sizes and Protection Systems. It is supplied in 3 m lengths. Manufacturing according to international standard IEC 61537.

Cables are kept tidy and with maximum ventilation.

Direct fixing to the ceiling without additional support by using just the Rejitech Fastener.

Installation in false ceilings or confined spaces.

Quick installation by just one person.

It installs quickly without the need for joints or bends.

Suitable for the management and distribution of cables in electrical and/or telecommunications in industrial installations, Civil Works and Infrastructures, tunnels and inspection galleries. It is mainly used for installations in false ceilings due to its height of 60 mm allowing it to be accommodated in reduced spaces.

  • #

    PHARMACEUTICAL INDUSTRY

  • $

    OFFSHORE, PORTS

  • %

    ENERGY

  • &

    RENEWABLE ENERGIES

  • '

    DATA CENTERS

  • ?

    SERVICE AND RETAIL

  • @

    TUNNELS INFRASTRUCTURES

  • A

    RAILWAY APPLICATIONS

  • Œ

    FIRE RESISTANCE SOLUTION

ETIM 10 EC000853
Huella de CO2. GWP A1-A3 (kg CO2 eq.) 0,672
Protection System BK8
Finish BLACK C8
Resistance Class Class 8
Flange (mm) 60
Width (mm) 60
Ø 4
Length (m) 3
kg/u 0,666
u 24
Material Steel with surface coating
Impact Strength (J) 20 J
Section (mm2) 676
Working temperature range (°C) -50 / 150 ºC
Fire resistance A1 No combustible
