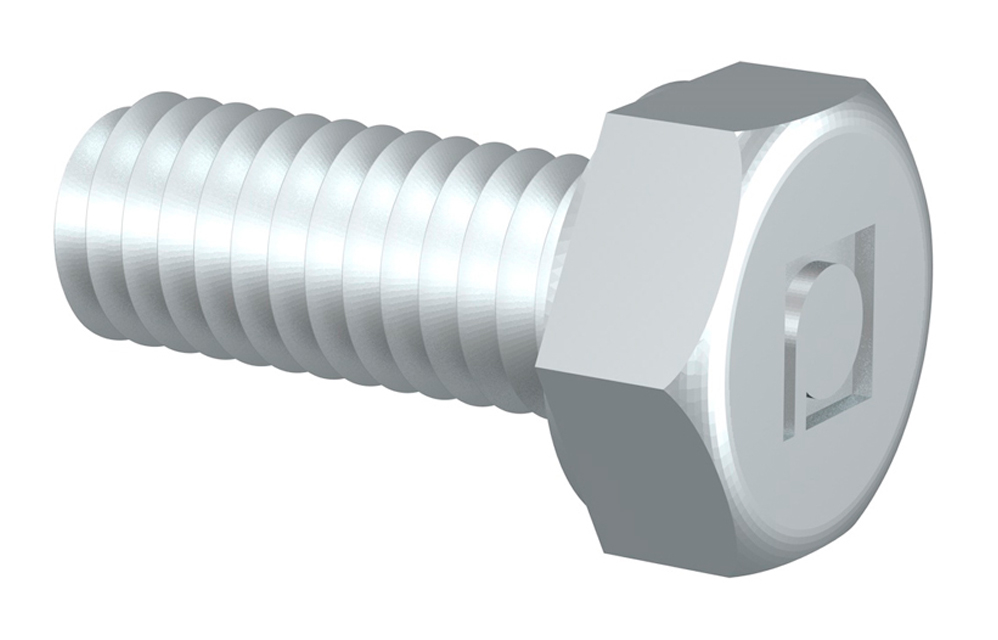

Hexagonal Set Screw
( Ref. 67020010 )
´ Data sheet
Metal bolt with hexagonal head for fixing joints, supports and channel structures for tray installations. M10, M10, With EZ protection system, EZ3 finish. Available in M8x15, M8x20, M8x35, M8x65, M10x20, M10x35 and M10x60. Made of steel and various Protection Systems.
CE conformity to directive 2014/35 / EU.
Available in various sizes: M6, M8 and M10 and lengths, 15, 20, 35 and 60 mm according to the protection systems.
Available in several protection systems: EZ, GC and AISI316L stainless steel.
Suitable for the fixing of joints, supports and channel structures in tray installations for the management of electrical cables and / or telecommunications in public buildings, infrastructures and civil works, industrial facilities and the tertiary sector.
ETIM | EC002380 |
---|---|
Protection System | EZ |
Finish | EZ3, Electrogalvanised |
Resistance Class | Class 3 |
M/PG | M10 |
G (mm) | 60 |
kg/u | 0.042 |
---|---|
u | 100 |
Material | Steel with surface coating |
Working temperature range (°C) | -50 / 150 ºC |
Fire resistance | A1 No combustible |
