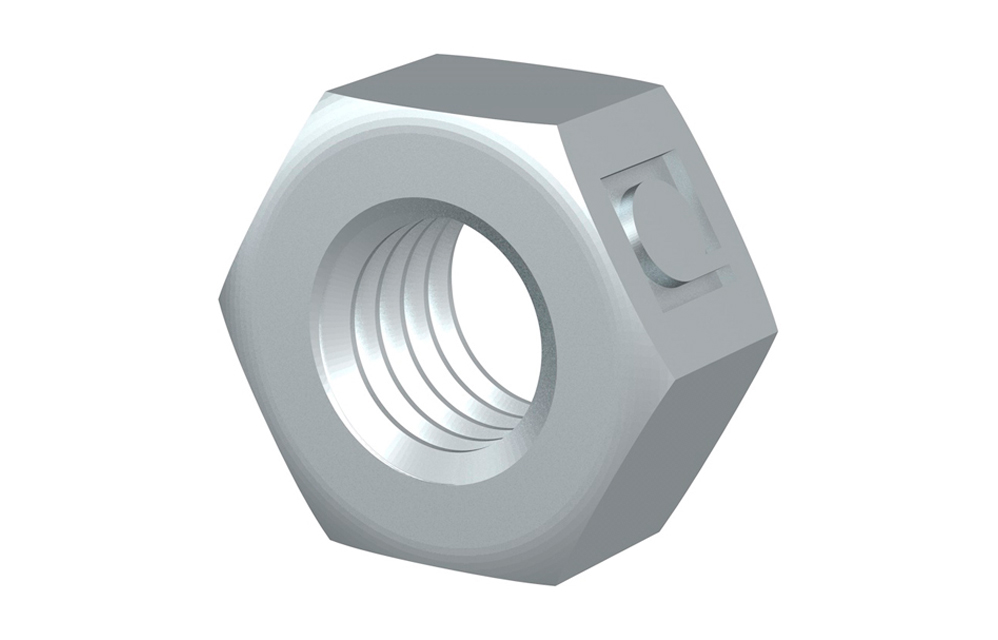

Hexagonal Nut
( Ref. 67020079 )
´ Data sheet
REACH_ROHS
Hexagonal metal nut that together with a bolt enables the fixing of joints, supports and channel structures for installations of trays, joints, flanges for supports and accessories. M10, M10, With EZ protection system, EZ3 finish. Available in M8 and M10. Made of steel and in various Protection Systems.
CE conformity to directive 2014/35 / EU.
Available in several protection systems: EZ, GC and AISI316L stainless steel.
Very versatile piece for use in any joint along with a M8 or M10 hexagonal set screw.
Suitable for the fixing of joints, supports and channel structures in tray installations for the management of electrical cables and / or telecommunications in public buildings, infrastructures and civil works, industrial facilities and the tertiary sector.
| ETIM | EC000129 |
|---|---|
| Protection System | EZ |
| Finish | EZ3, Electrogalvanised |
| Resistance Class | Class 3 |
| M/PG | M10 |
| kg/u | 0.010 |
| u | 100 |
|---|---|
| Material | Steel with surface coating |
| Working temperature range (°C) | -50 / 150 ºC |
| Fire resistance | A1 No combustible |
