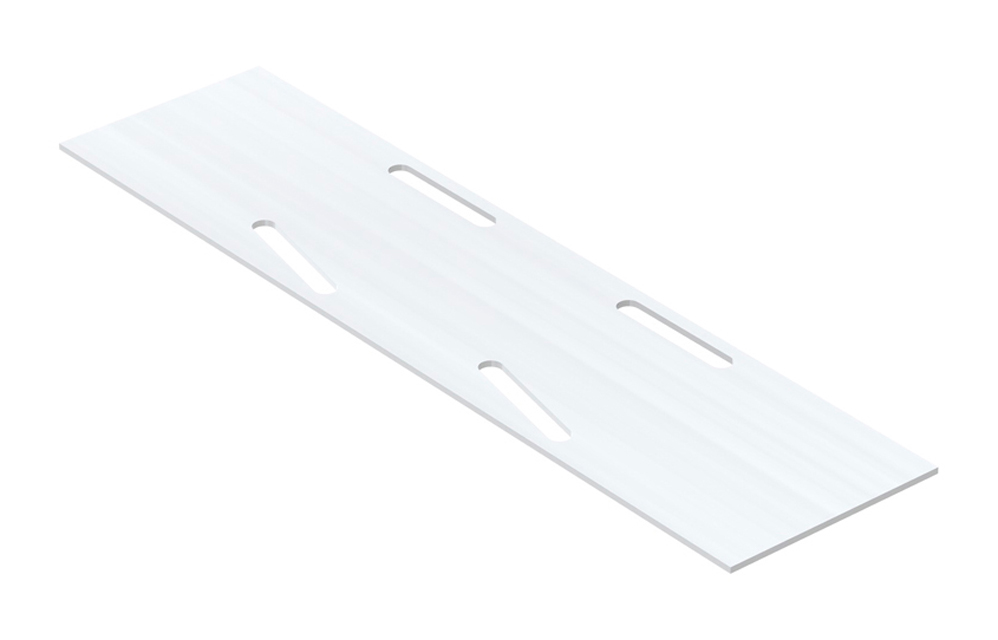

PEMSAband Central Joiner

( Ref. 71060300 )

71060300
Pemsaband® Central Tray Joint for widths of 300, 400, 500 and 600 mm that provides the necessary strength at the joint. Width 300 mm, I316L finish. Manufactured in steel and available in GC or PG Protection System and steel AISI 304 and AISI 316.

Provides the necessary strength in the connections of large width trays so that there is no deformation in the joint.

Available in various protection systems: PG, GC, BK8, AZ+ and stainless steel AISI 304 and AISI 316L.

Electrical continuity guaranteed according to standard IEC61537.

Its unique design allows the attachment to the Pemsaband® sheet tray lengths by using a part in the base.

Suitable for joining straight lengths of Pemsaband® One perforated and Solid tray of widths 300-600 mm, for the Support, management and distribution of Electrical and/or telecommunications cables in public buildings, infrastructures and civil works, tertiary sector and industrial applications.
ETIM 10 EC002413
Huella de CO2. GWP A1-A3 (kg CO2 eq.) 1,274
Protection System INOX
Finish Stainless Steel AISI 316L
Resistance Class Class 9D
Width (mm) 300
kg/u 0,240
u 10
Material Acero inoxidable AISI 316L
Working temperature range (°C) -50 / 150 ºC
Fire resistance A1 No combustible
